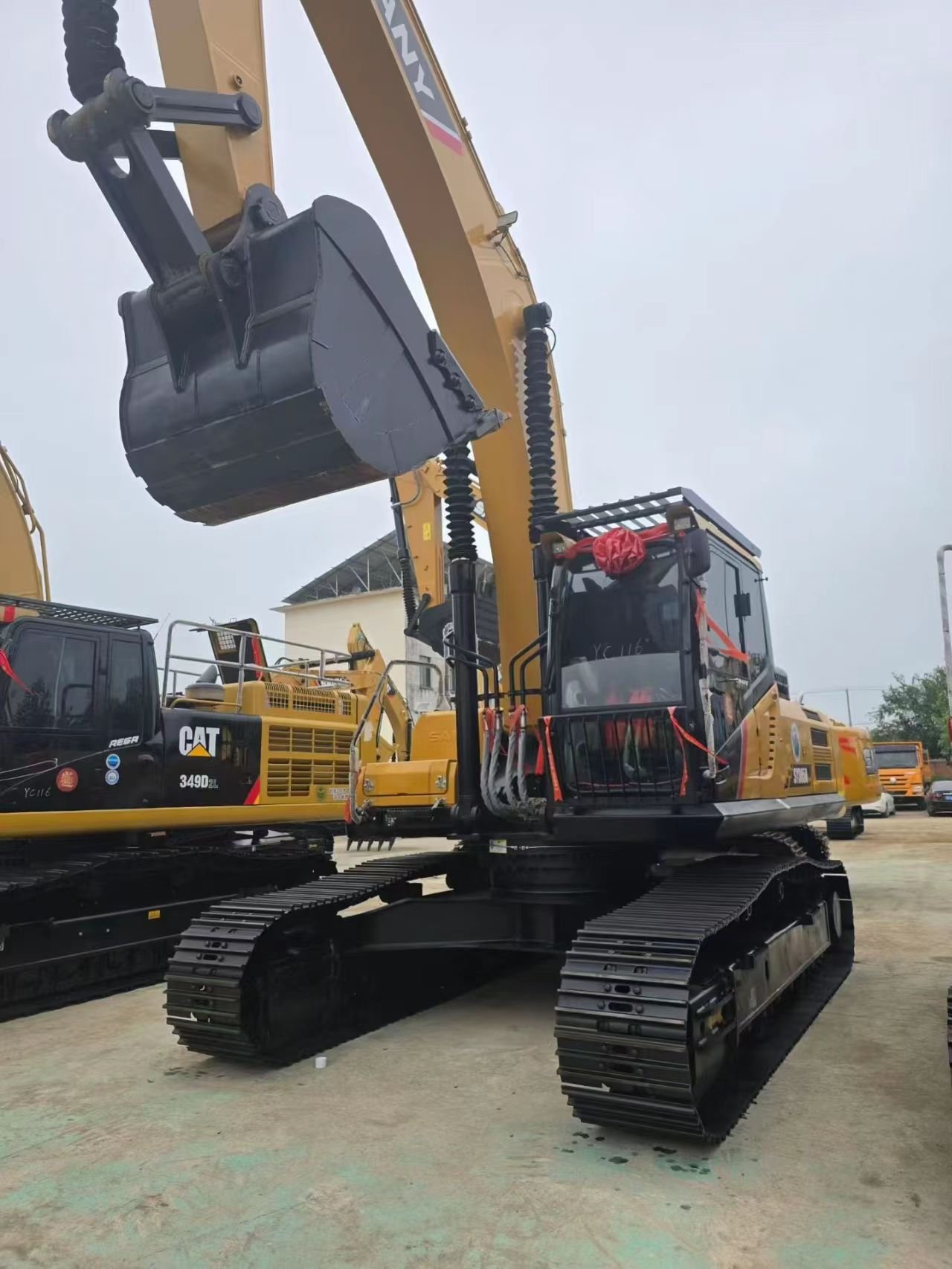

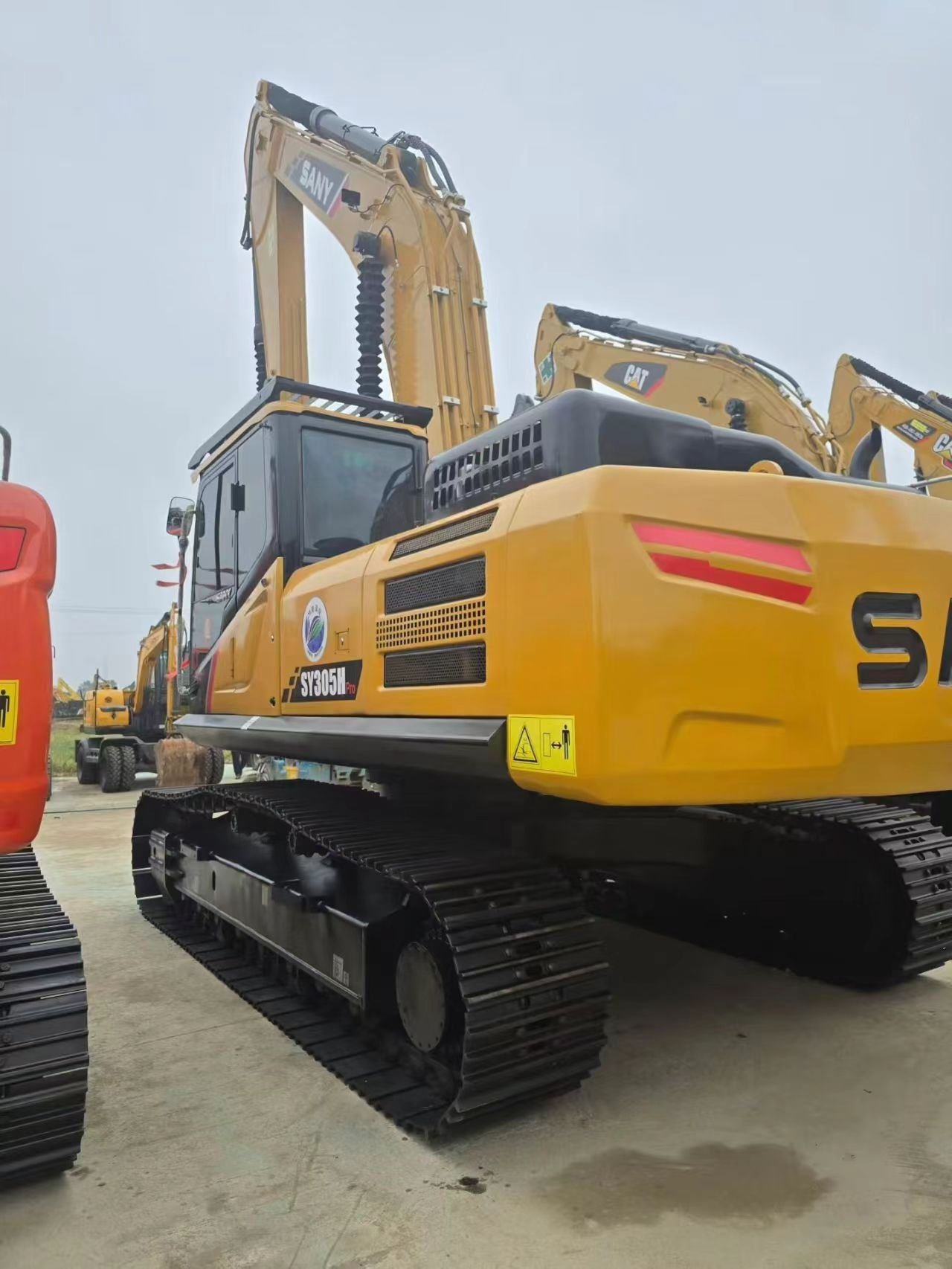

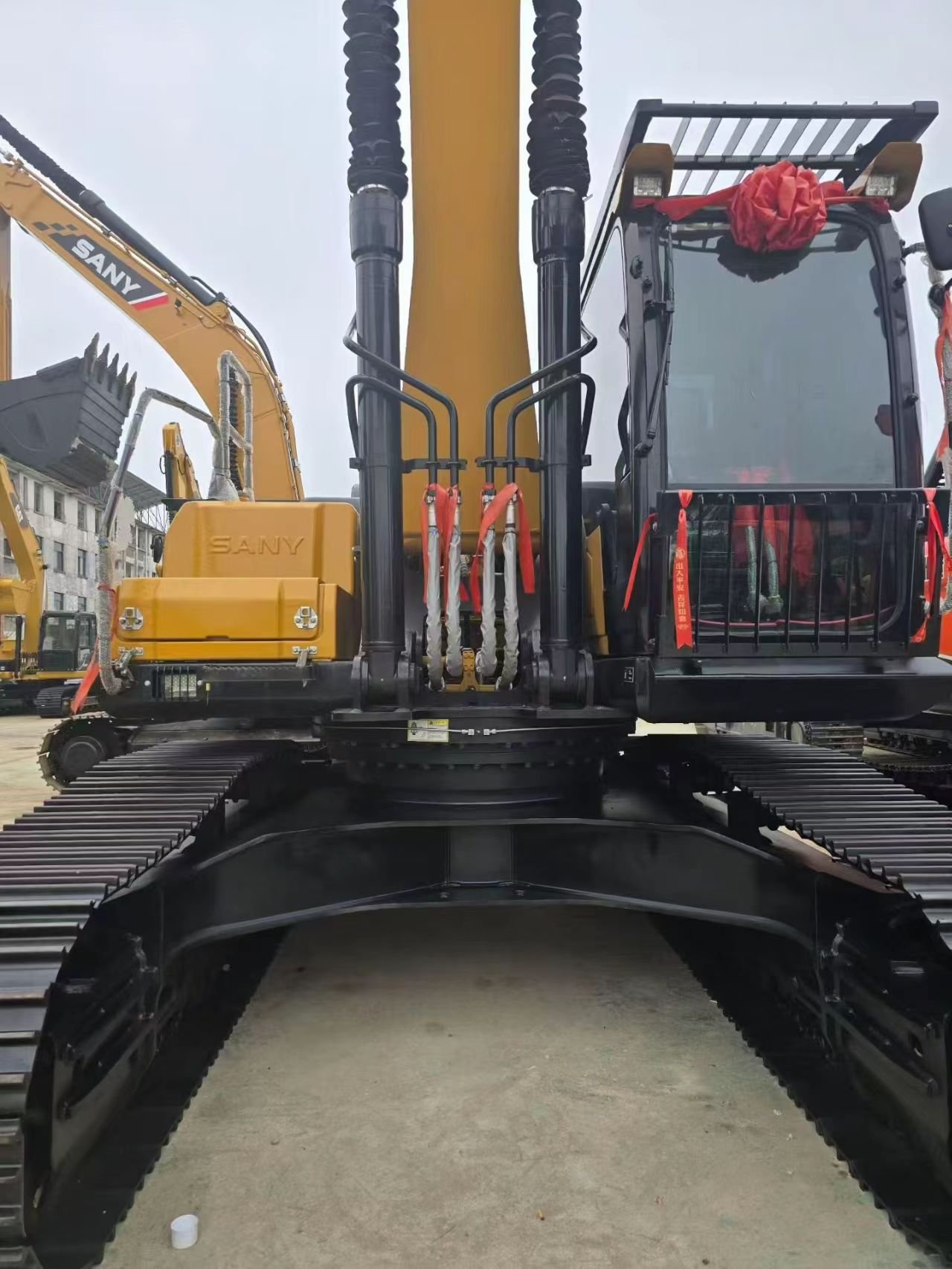

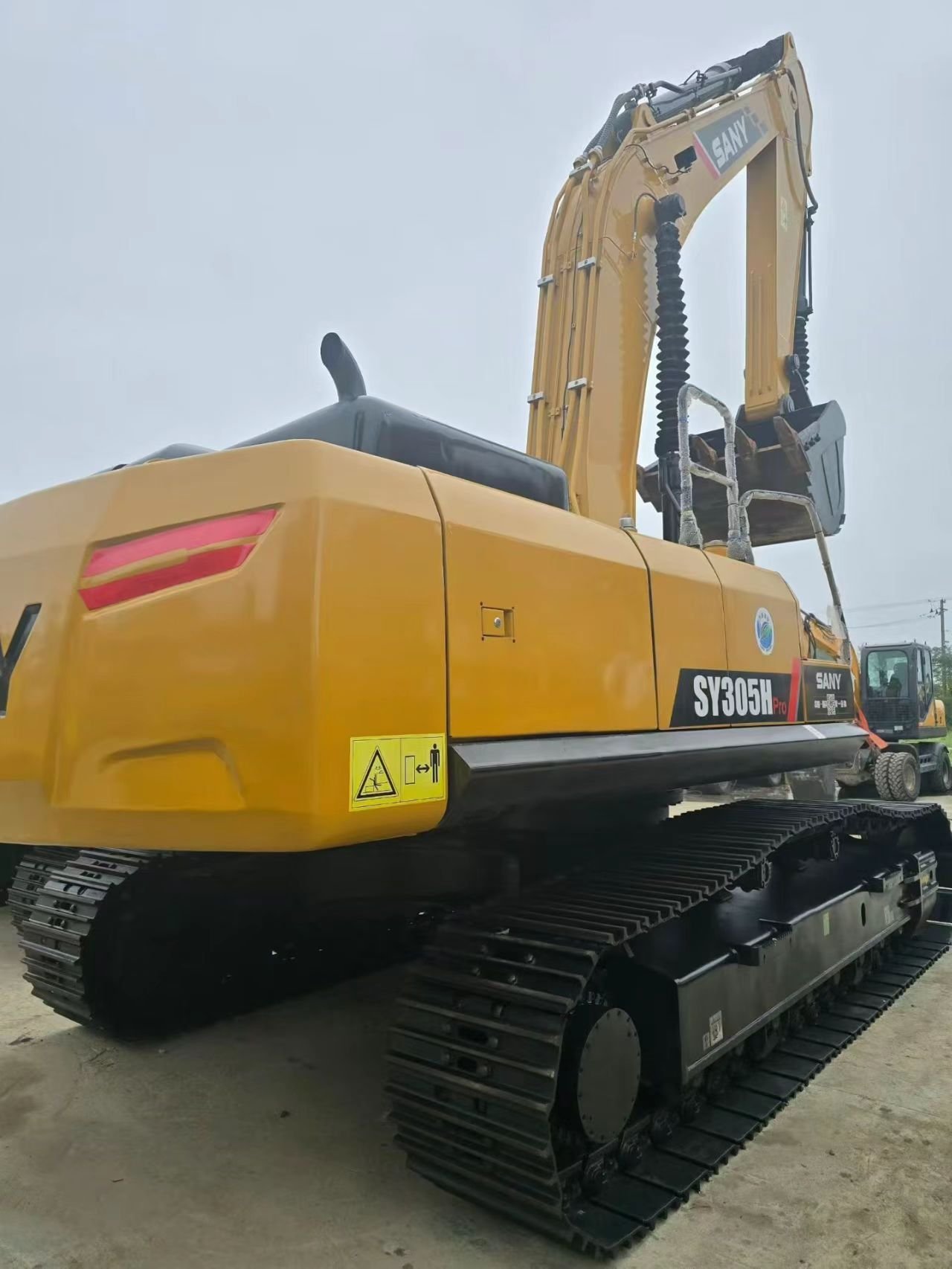

Excavator SANY SY305H

The SANY SY305H is a heavy-duty solution tailor-made for severe mining applications. Its mining-optimized powertrain and high-pressure hydraulics guarantee exceptional performance. Through全方位 design enhancements including reinforced boom/arm, strengthened undercarriage, and a high-capacity cooling system, it achieves unmatched durability and availability in dusty, high-temperature, and high-load environments, dedicated to providing users with the lowest total cost per ton and maximum operational benefit.
Contact US

USED Sinotruk Howo/Sitrak/SHACMAN/FAW/Foton/Hino/Dongfeng/Other Truck

Absolute quality contro!          Gost-effective          complete range of trucks
15% to 50%
of new truck price

Product Description

          The SANY SY305H Mining Excavator is a “rugged powerhouse” meticulously engineered for harsh mining conditions and high-intensity earthmoving operations. It embodies SANY’s cutting-edge technology and proven expertise in mining equipment, adhering to a core design principle of “Power, Efficiency, and Durability.” It achieves comprehensive breakthroughs in powertrain performance, structural strength, and cooling capabilities, aiming to provide a reliable, high-productivity core asset for continuous heavy-duty applications such as mining extraction, large-scale quarries, and heavy infrastructure projects.
          The SY305H is powered by a high-output engine specifically optimized for mining and SANY’s self-developed “Mining Edition” high-pressure hydraulic system. This combination delivers best-in-class digging force and breakout force for its size, ensuring efficient fragmentation and loading even when facing hard rock and oversized boulders. Its reinforced boom and arm utilize integrated steel plate welding and internal baffle reinforcement for optimized stress distribution and dramatically extended fatigue life. A high-capacity, multi-layer cooling system effectively combats the challenges of high dust and ambient temperatures in mines, ensuring consistent and stable operation of the hydraulic system and engine during prolonged, high-load cycles.
          Furthermore, the SY305H’s undercarriage is comprehensively reinforced, featuring a strengthened X-frame, thickened track shoes, and heavy-duty rollers, providing the exceptional stability and ground clearance required for mining. The cabin incorporates FOPS (Falling Object Protective Structure) design, with an optimized interior layout, a specialized mining suspension seat, and an enhanced climate control system, creating a safe and comfortable sanctuary for the operator in demanding environments.
          Choosing the SANY SY305H means gaining a trustworthy partner for the mine. Its unparalleled reliability and sustained high productivity translate directly into a lower cost per ton and a higher return on investment, serving as powerful assurance for users aiming to push production limits and succeed in competitive mining operations.
SANY SY305H-S Hydraulic Excavator Technical Specifications
1. Basic Machine Parameters
  • Model: SY305H-S
  • Rated Power: 210 kW / 1900 rpm
  • Operating Weight: 31,500 kg
  • Standard Bucket Capacity: 1.8 m³
  • Emission Standard: China National IV (Stage IV)
2. Main Dimensions (mm)
  • Transport Length: 10,700 mm
  • Overall Width: 3,190 mm
  • Transport Height: 3,470 mm
  • Cab Height: 3,280 mm
  • Standard Track Shoe Width: 600 mm
3. Operating Ranges (mm)
  • Max. Digging Height: 10,500 mm
  • Max. Dumping Height: 7,360 mm
  • Max. Digging Depth: 6,815 mm
  • Max. Digging Reach: 10,870 mm
4. Powertrain & Key Systems

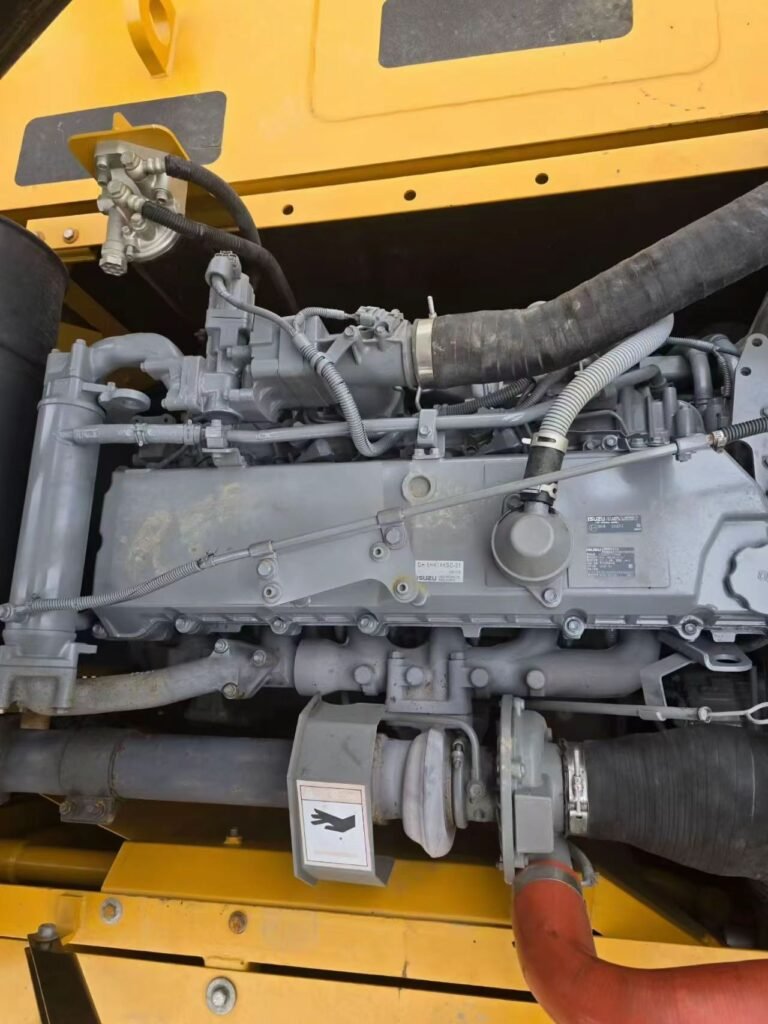

  • Engine: Isuzu 6HK1 engine. Features a upgraded VGT (Variable Geometry Turbocharger) for better response and high-altitude performance.

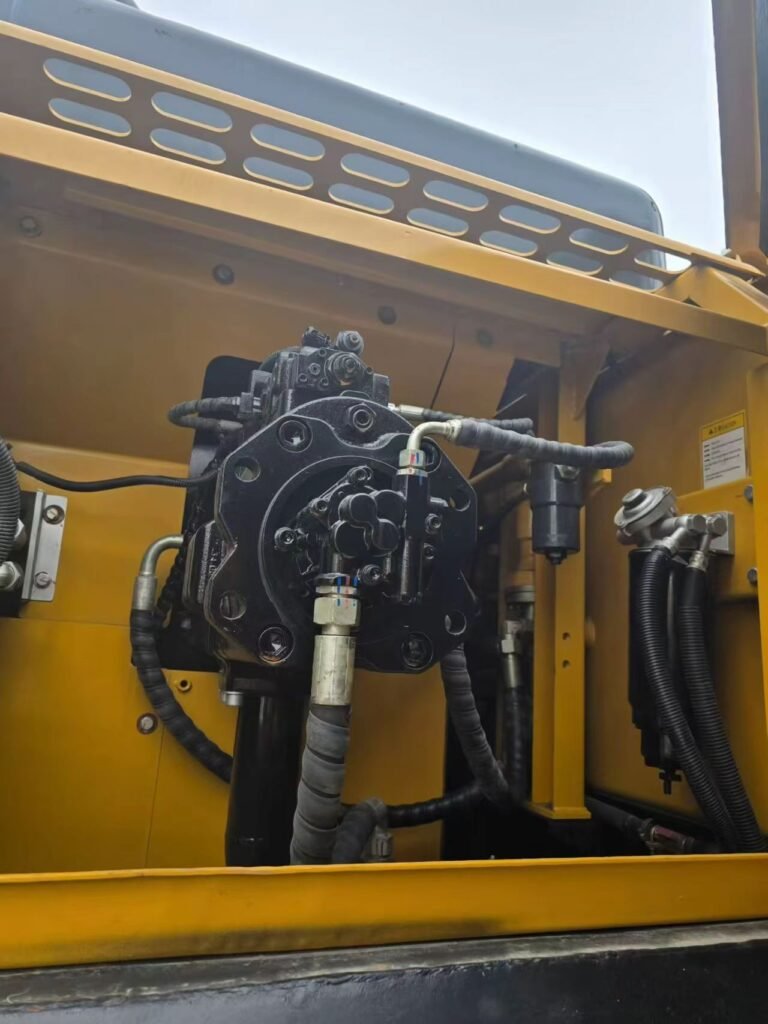

  • Hydraulic System: Main pump displacement increased from 160cc to 180cc. Utilizes fully electronic hydraulic technology for improved control and efficiency.

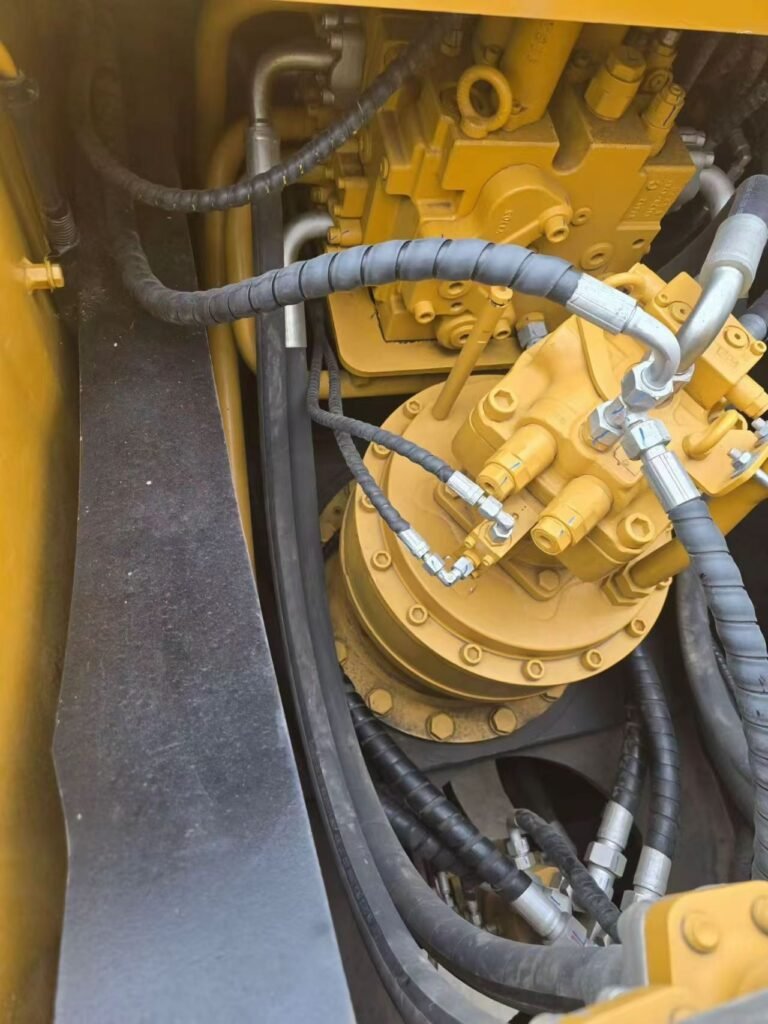

  • Swing System: Upgraded RG23 reducer, improving swing capability by 12%.
5. Cab & Intelligence
  • Display: 10-inch large screen, supports 4G OTA upgrades.
  • Features: One-click service request, SPACE/POWER mode switching, rearview camera.

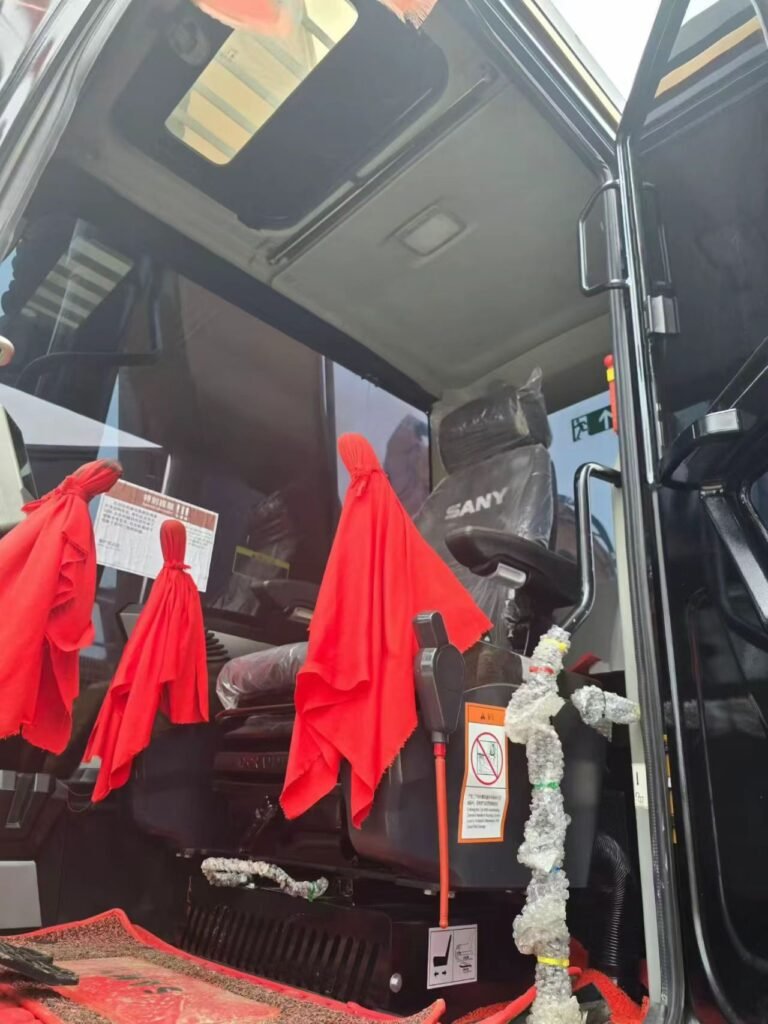

  • Cab: New interior design with narrow armrest box, cup holders, 24V power port, USB ports, and a comfortable suspension seat.
6. Key Technologies
  • DPC (Direct Power Control): Dynamically adjusts power based on load for fuel efficiency.

  • Bucket Options: Standard rock bucket

    岩石铲斗

    or optional dirt bucket

    土方铲斗

    . Bucket shape is optimized for better material flow and higher fill factor.

  • Stick Regeneration & Fast Return: Saves fuel and increases speed during light and heavy digging cycles.
7. Maintenance & Service
  • Easy Maintenance: Large openable covers for easy access. Standard alerts for air filter blockage, fuel pressure, and water level in the fuel filter.
  • Service Support: Supported by SANY’s global dealer network.
  • Easy Maintenance System: Enables remote machine management via a mobile app.
8. Standard Equipment Highlights
  • Engine: 24V/5.0kW starter, dry-type air filter, cartridge-type oil and fuel filters.
  • Cab: FOPS/ROPS certified, automatic A/C, suspension seat.
  • Undercarriage: 600mm triple-bar track shoes, hydraulically tensioned track.
  • Hydraulics: Pilot control cutoff lever, main relief valves, suction/return/pilot filters.
  • Safety: Fire extinguisher, seat belt, emergency exit, mirrors, rearview camera.


Note: The following parameters are for common configuration reference only. Specific parameters may vary depending on the vehicle version, model year, and optional equipment. Final interpretation rests with the manufacturer. Please refer to the actually delivered vehicle for definitive specifications.
