Product Description
1. General Information
Item | Parameter | Unit |
|---|---|---|
Model | WZ30-25 | – |
Machine Type | Articulated Backhoe Loader | – |
Manufacturer | Xuzhou Construction Machinery Group Inc. (XCMG) | – |
Drive Mode | Four-wheel Drive | – |
Chassis Type | Articulated | – |
Digging Device Type | Central Mounted | – |
2. Overall Dimensions & Performance
Item | Parameter | Unit |
|---|---|---|
Operating Weight | 9500 | kg |
Overall Length | 8000 | mm |
Overall Width | 2310 | mm |
Overall Height | 3350 | mm |
Wheel Base | 2600 | mm |
Turning Radius | ≤ 5300 | mm |
Max. Driving Speed | ≥ 33 | km/h |
Max. Gradeability | ≥ 20 | ° |
Maximum Traction | ≥ 70 | kN |
Overall Traction | 70 | kN (Approx.) |
3. Engine System
Item | Parameter / Description | Unit |
|---|---|---|
Manufacturer | Yuchai | – |
Model | YC4B90-T20 | – |
Type | Vertical, In-line, Four-stroke, Turbocharged, Electronic Unit Pump | – |
Cylinder Bore x Stroke | 108 x 132 | mm |
Total Displacement | 4.837 | L |
Rated Power | 65 | kW |
Rated Speed | 2400 | r/min |
Minimum Specific Fuel Consumption | 230 | g/kW·h |
Fuel Tank Capacity | 220 | L (Mentioned in text) |
Ambient Temperature Range | Tested and certified for -25°C to 45°C | – |

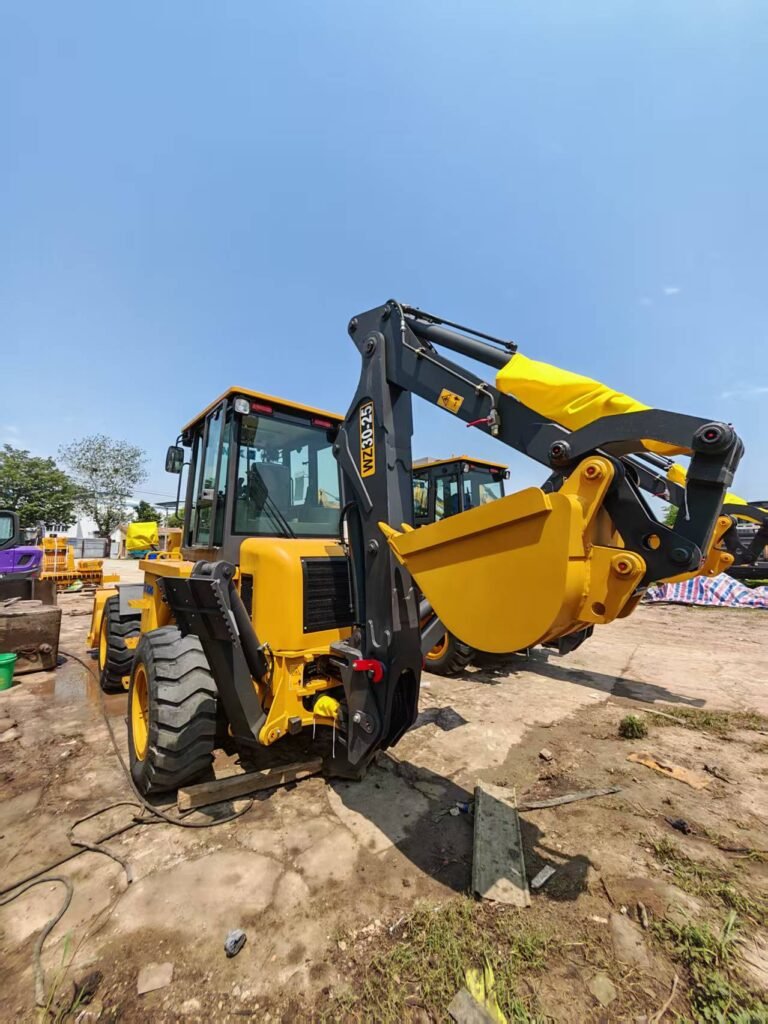

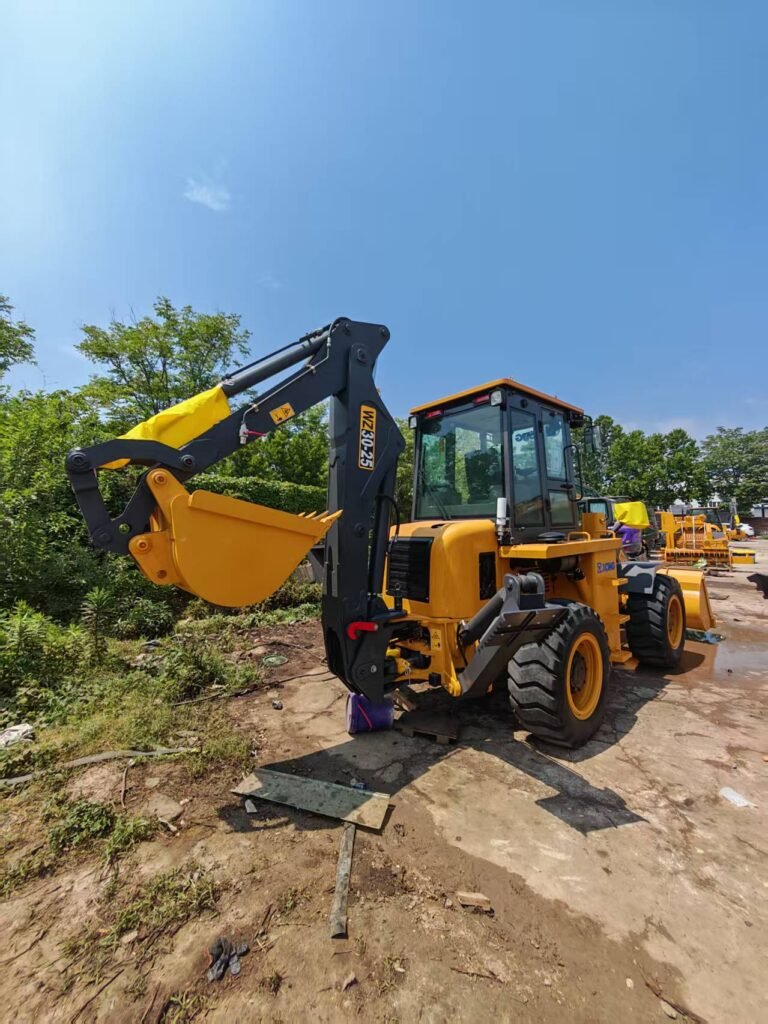

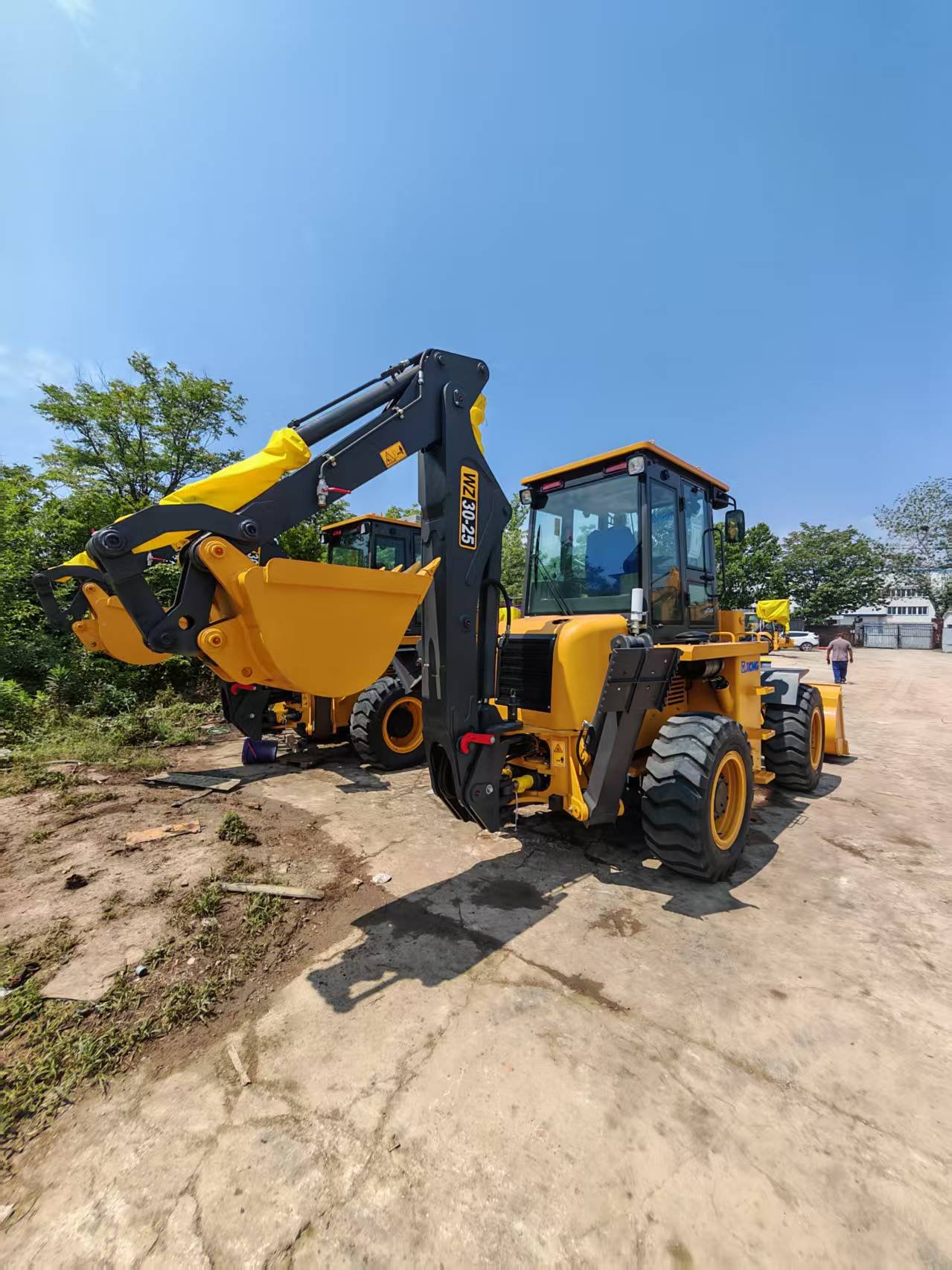

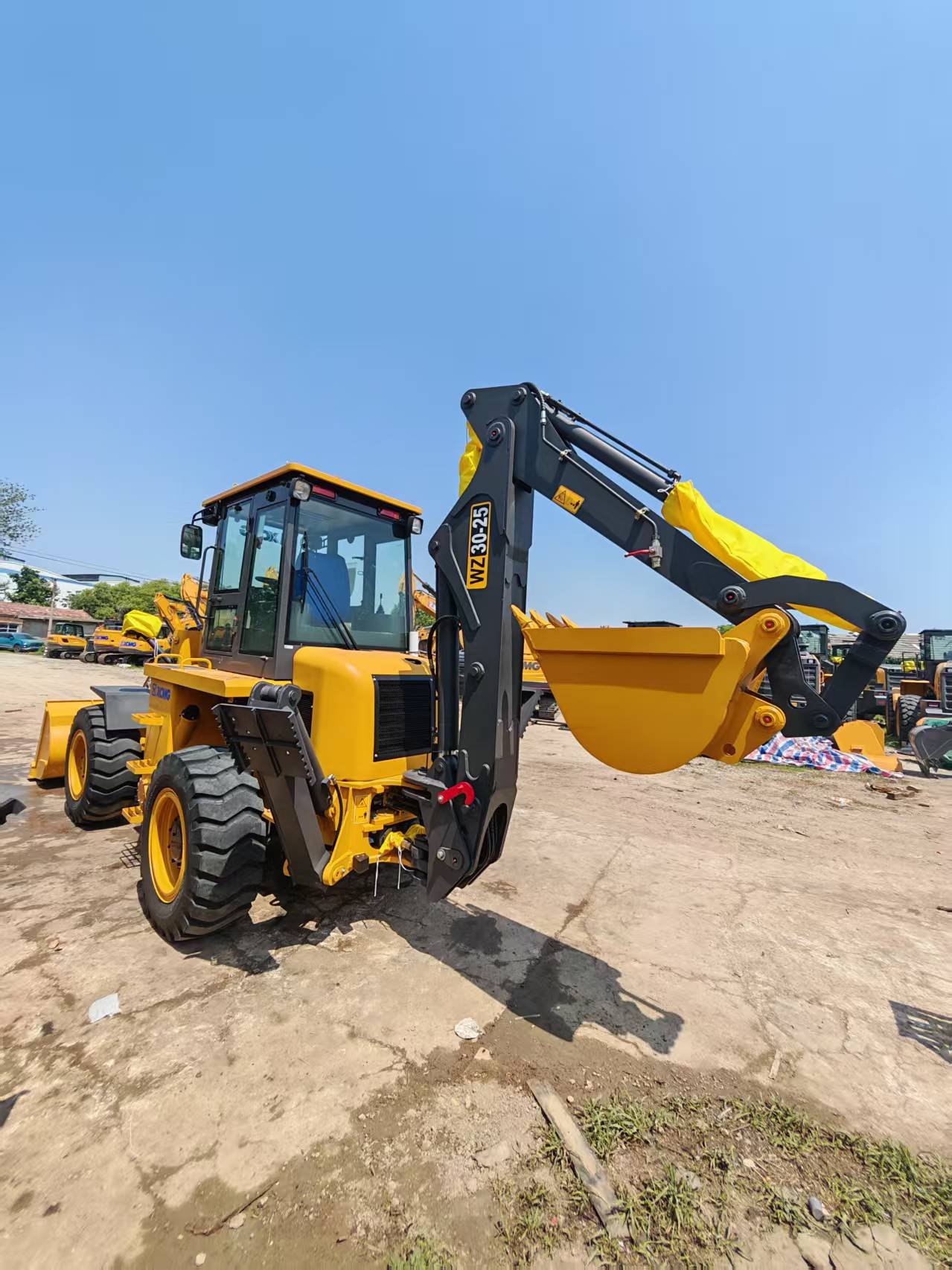

4. Backhoe (Digging End) Parameters
Item | Parameter | Unit |
|---|---|---|
Rated Bucket Capacity | 0.3 | m³ |
Digging Force (Breakout Force) | 40 | kN |
Maximum Digging Radius | 5433 | mm |
Maximum Digging Depth | 4137 | mm |
Hydraulic System Pressure | 18 | MPa |
Working Device Structure | International standard straight arm box-type structure | – |
Hydraulic System Feature | Equipped with load compensation technology for fine control | – |

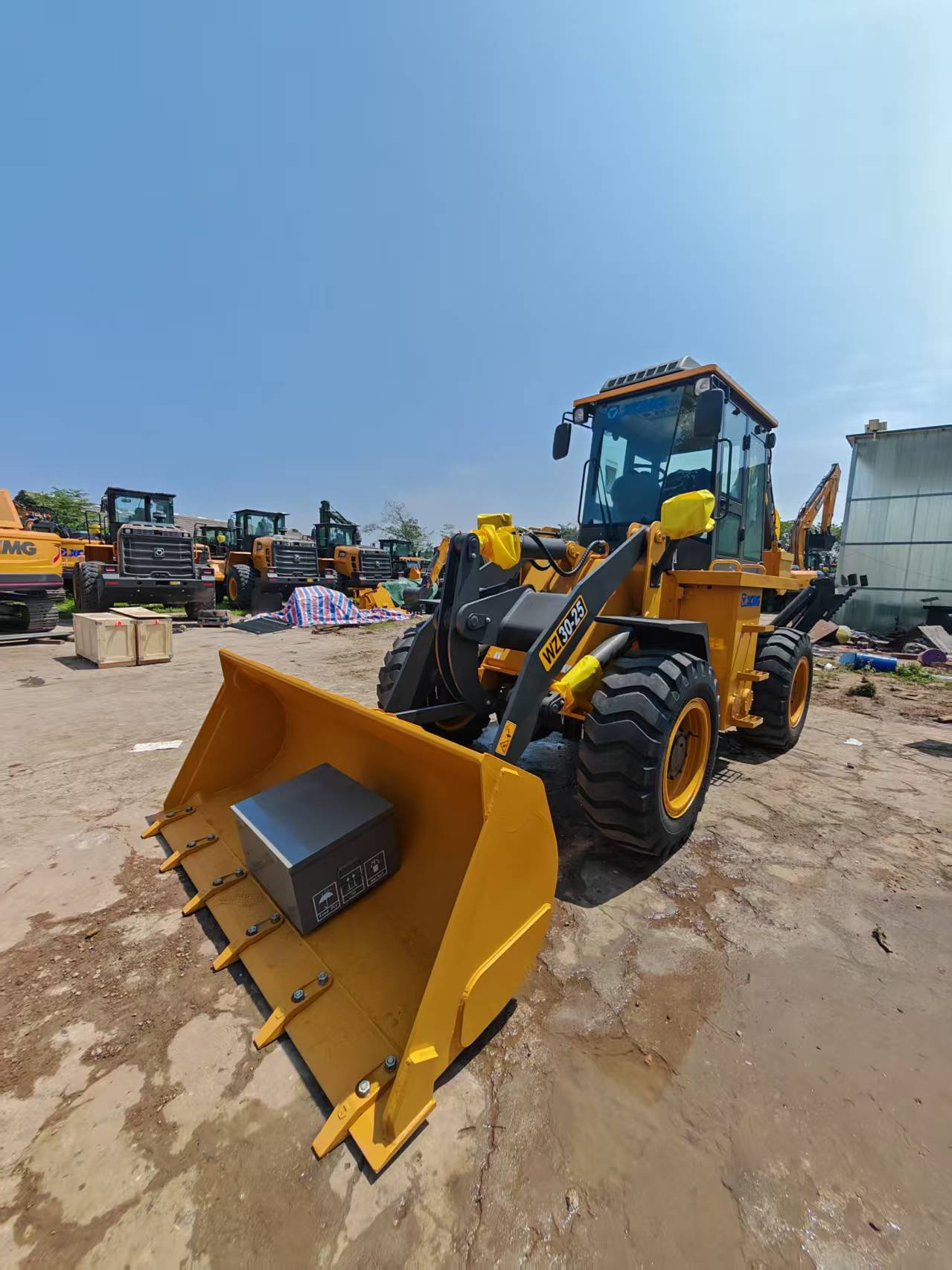

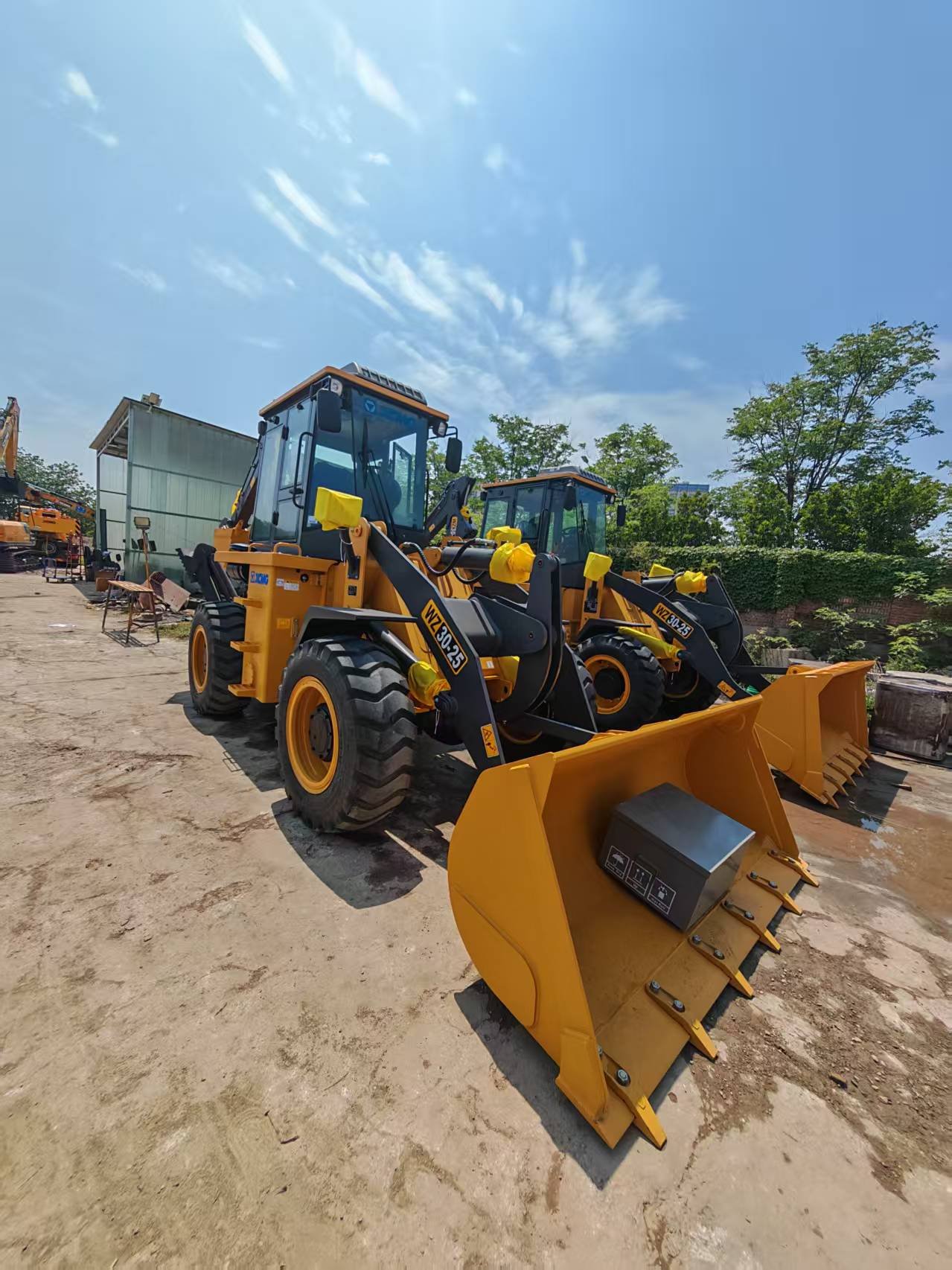

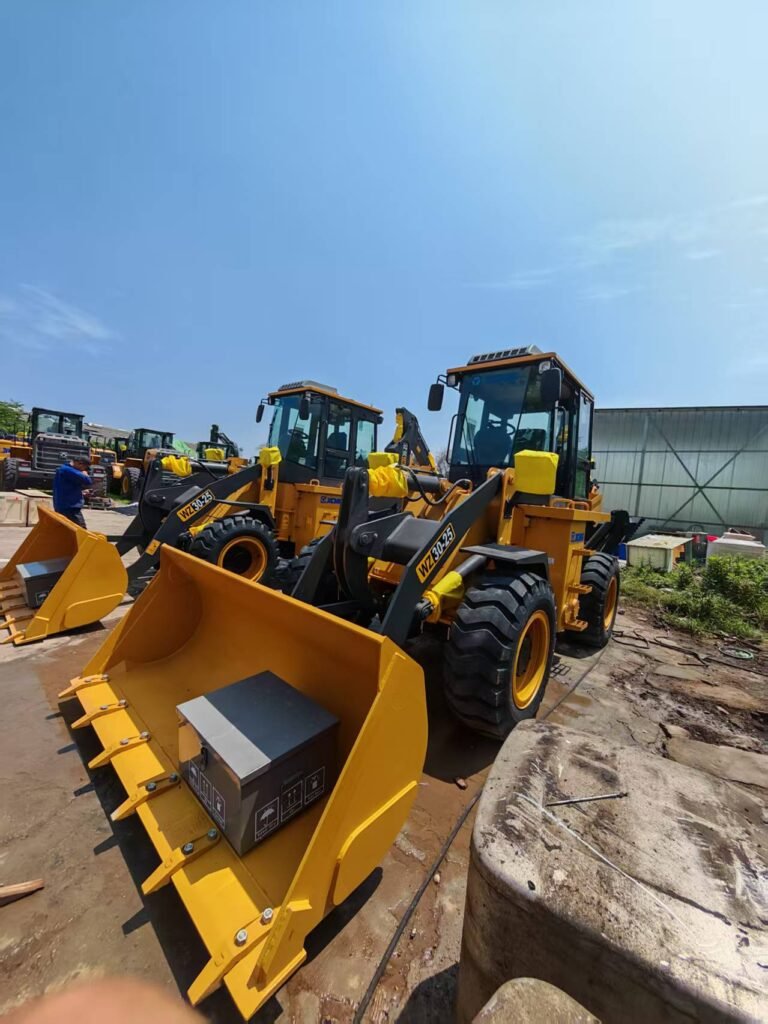

5. Loader (Loading End) Parameters
Item | Parameter | Unit |
|---|---|---|
Rated Bucket Capacity | 1.0 | m³ |
Rated Payload | 2500 | kg |
Maximum Dumping Height | 2650 | mm |
Maximum Dumping Distance | 930 | mm |
Dumping Distance Advantage | Approximately 15% greater than peer products | – |
Hydraulic System Pressure | 18 | MPa |
Auto Bucket Leveling | Standard feature | – |
Lift Time (Bucket Raise) | ≤ 5 | s |
Full Cycle Time (Lift, Dump, Lower) | ≤ 10 | s |
Working Device Structure | Z-type Reverse Six-link Mechanism | – |
6. Transmission & Hydraulics
Item | Parameter / Description | Unit |
|---|---|---|
Transmission Type | Hydraulically Controlled Transmission | – |
Gears | 4 Forward, 2 Reverse | – |
Brake System | Air-over-hydraulic four-wheel brakes | – |
Parking / Emergency Brake | Combined system with low-pressure auto-actuation and start protection | – |

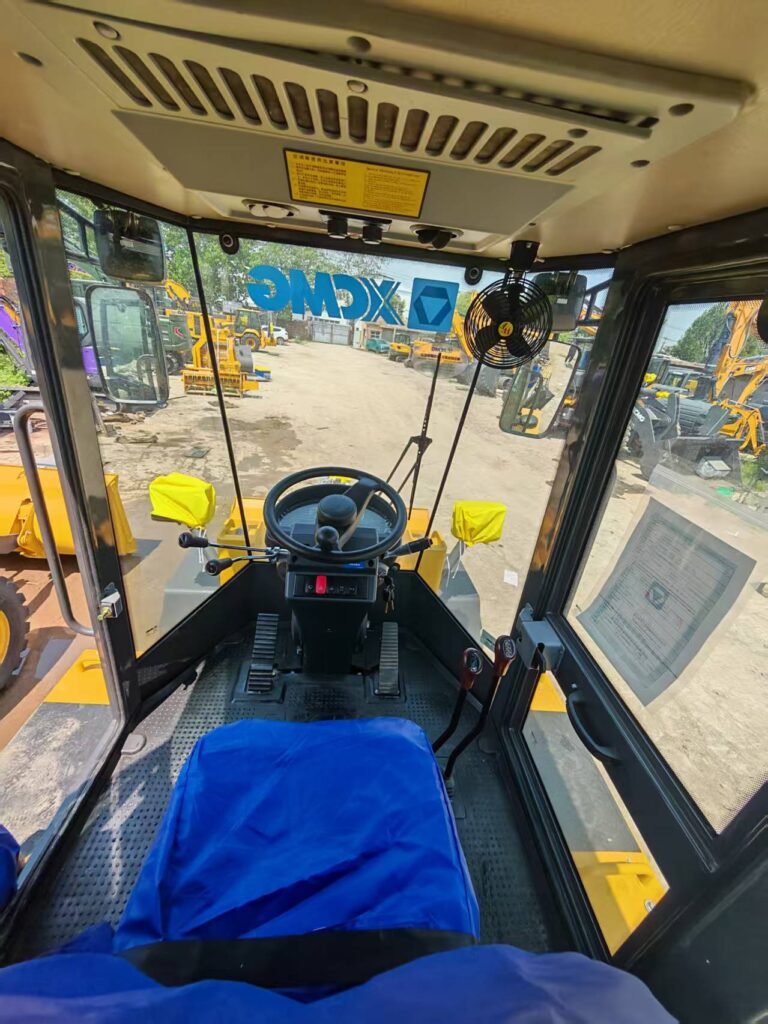

7. Cab & Operation Environment
- Comfort: Spacious ROPS/FOPS cab, ergonomically designed with ample legroom and a multi-way adjustable seat.
- Controls: Control levers and instrument panel are ergonomically arranged. The backhoe is controlled by pilot levers for reduced operator fatigue.
- Safety: Equipped with a fire extinguisher and life hammer. Electrical system is dustproof, waterproof, and corrosion-resistant.
- Mobility: Four-wheel drive with large tires provides high ground clearance and strong trafficability on uneven terrain.
8. Maintenance & Serviceability
Maintenance Item | Interval / Description |
|---|---|
Engine Oil | Check/Replace every 250 service hours. |
Engine Oil Filter Element | Replace every 250 service hours. |
Fuel Filter Element | Replace every 500 service hours. |
Air Filter Element | Check/Replace every 250 service hours. (Easily accessible) |
Transmission Filter Element | Replace every 250 service hours. |
Transmission Oil | Replace every 500 service hours. |
Drive Axle Oil | Replace every 1000 service hours. |
Convenience Features | Equipped with a tire pressure gauge and a grease gun for routine checks. The engine air filter is easy to access without climbing. |
Structural Reliability | The backhoe structure is reinforced with thick steel plates. Loader and backhoe buckets feature replaceable teeth. |
Package and Shipping
1. Wax: Do a wax spraying method to forestall the truck physique from being corroded bymeans of seawater throughout transportation
2. Shipping: By bulk cargo carrier, RORO ship or flat rack. Reliable logistics offerings from well-known freight suppliers make the transporttechnique secure and timely.
3. We warranty that all merchandise has been strictly inspected and is in suitable circumstancesearlier than shipment.
Our Advantages
—–Competitive price
We have more than ten years of experience in exporting used trucks; through extensive comparisons and feedback from customers, our prices are more competitive than other competitors. Our trucks have a fifty to fifteen percent discount based on age.
—–Rich truck brands
We can provide second-hand tractors and dump trucks of different years and brands such as SINOTRUK Howo, Shandeka, Shaanxi Automobile, Jiefang, Dongfeng, GAC Day and Night, and FAW.
–—-Reply quickly
Our team consists of a group of hard-working and enterprising individuals working 24/7 to respond to customer inquiries and questions. Most issues can be resolved within 12 hours.
Other Products
If you are interested in our used trucks, please send an inquiry and leave your contact information or send us an email. We will respond to you within two hours and configure a suitable used truck according to your needs and give you the best price.
FAQ
Q1： What can you buy from us?
A：Used tractor head, used dump truck, semi-trailer, construction truck, electric car, construction machinery, trailer accessories and truck accessories.
Q2： How about quality control of your company?
A： We pay great attention on quality control from the beginning to the end,and our QC department will inspect all vehicle strictly before shipment delivery.Third party inspection is welcome.
Q3： When is your delivery time?
A： Within 20-30 days after ordering.
Q4：Is it all right to make customer brand name?
A： Yes, OEM is welcome if the quantity above the MOQ.
Q5： Where is your loading port?
A： Qingdao, China.
Q6：why should you buy from us not from other suppliers?
A：We have first-class production equipment, strong technical force and advanced testing methods to provide you with more stable and reliable vehicles.
